Handlebar Display
USD48.00 USD98.00Price range: USD48.00 through USD98.00
- 7-Day Return Policy
- 7/24 Customer Support
Geeko offers flexible operation methods to suit different usage habits:
By default, you can adjust the gear via the Geeko Cap, or use the APP to adjust the gear and check the speed.
If you prefer not to use the APP for adjustments, you can also expand with a Handlebar Display, which allows you to adjust the gear, check the speed, and more—making operation more intuitive and convenient.
The Handlebar Display provides real-time access to the following key information, covering all riding scenarios:
- ON/OFF (Power control)
- Speed display
- Unit switching (KM/H & MPH, Kilometers per hour & Miles per hour)
- Backlight indicator (Suitable for night riding)
- 6KM/H work mode (Low-speed safe start)
- PAS level selection (Adjust assist intensity as needed)
- Error code indicator (Quick troubleshooting for device issues)
- SET operation (Customize parameters)
- Distance indicator (Total riding distance)
- Trip time indicator (Single ride duration)
- Battery indicator (Real-time battery level for range awareness)
- Auto sleep after 5 minutes (Energy-saving function)
After expanding with the Handlebar Display, please note the following usage details to ensure smooth operation:
- Power activation methods: Three flexible startup modes are supported—turn on only the Handlebar Display, turn on only the Geeko Cap, or turn on both simultaneously. All three methods can successfully activate the Geeko device’s power; choose the one that fits your needs.
- Multi-device compatible use: The Handlebar Display and APP can run simultaneously without interference. If you need to use the APP, please turn on the Geeko Cap in advance to ensure normal signal connection between devices.
Drawings & Photos
GD01
The GD01 is a compact LCD display designed to be mounted on the left side of the handlebar. It is compatible with handlebars with a diameter of 22.2mm, measuring just 83mm x 48mm x 48mm, and offers clear visibility.
S700
The S700 is a highly visible LCD display designed to be mounted in the center of the handlebar. Measuring 84.7mm x 121mm x 79mm, it supports large font display for easy readability. It also comes with a button accessory, which can be mounted on either the left or right side of the handlebar—compatible with handlebars that have a 22.2mm diameter.

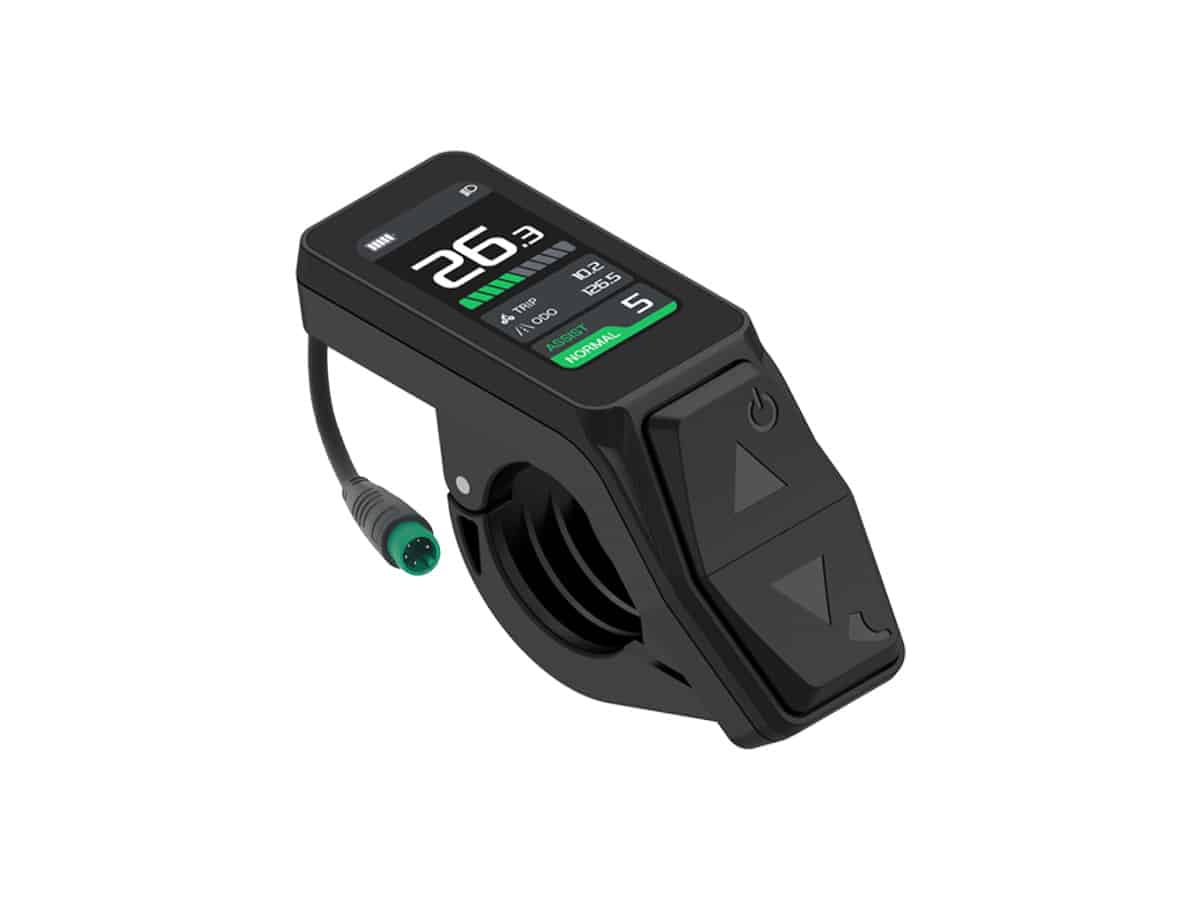

M210C

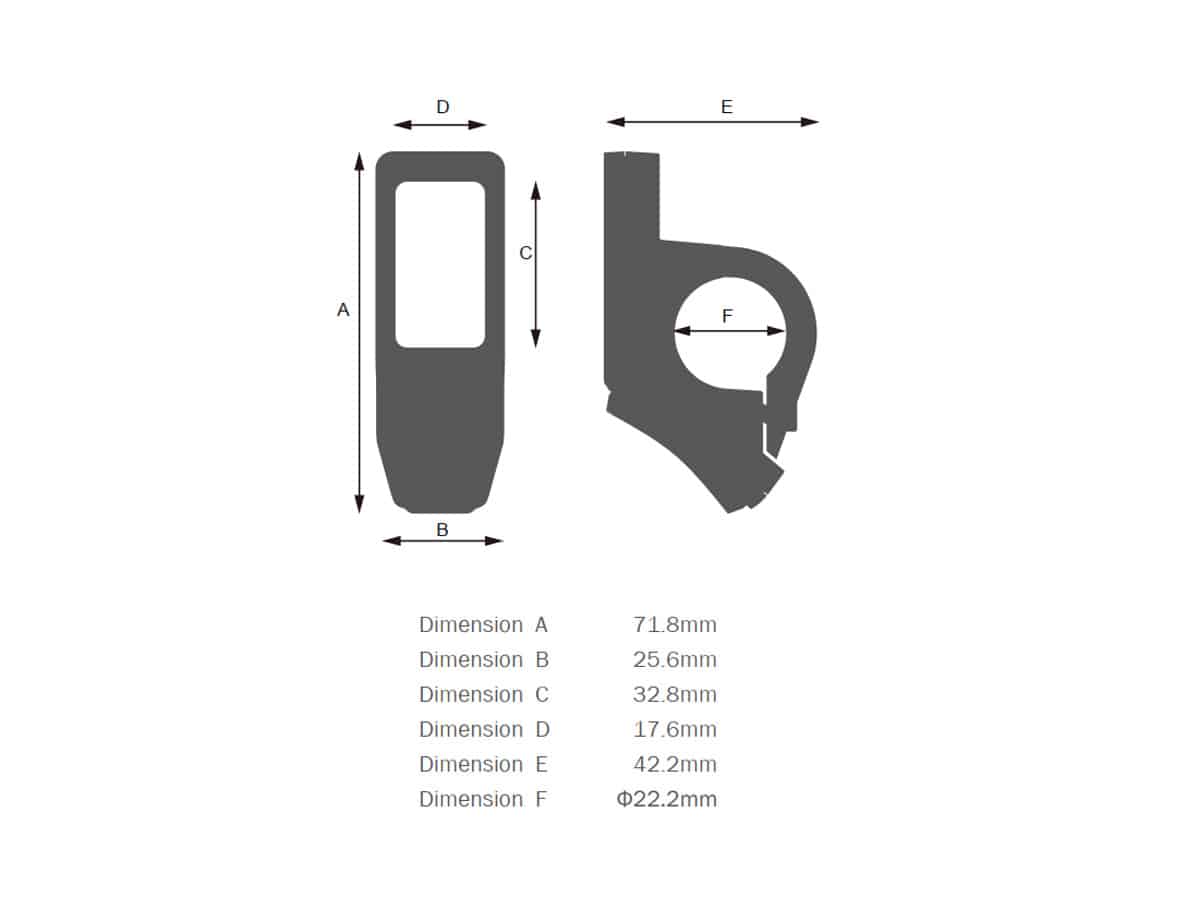

The M210C is an ultra-compact color TFT display, specifically designed for handlebars with a diameter of 22.2mm. It measures a mere 71.8mm × 25.6mm × 42.2mm, and is equipped with a 1.6-inch screen with a resolution of 170×320, ensuring clear visibility. Its compact size keeps the handlebar neat and uncluttered, and it can be mounted on either the left or right side of the handlebar. Installation is simple: there is no need to remove the handlebar grip—just fasten the two half-rings around the handlebar and secure them with screws.
Note:
The M210C display is only compatible with the controller model A2PA. You can check the controller model in the “Device Information” section of the APP.
M210CTL
The M210CTL is an ideal TFT instrument. It integrates a thumb throttle function while retaining the ultra-compact size of the M210C. With dimensions of just 79.6mm × 49.5mm × 52mm, it is compatible with handlebars with a diameter of 22.2mm. Due to the built-in thumb throttle, it must be mounted on the left side of the handlebar. Installation is straightforward: there is no need to remove the handlebar grip—simply fasten the two half-rings around the handlebar and secure them with screws.
If you prefer a cleaner and more sleek appearance for your handlebar, the M210CTL is your ideal choice.
Note:
The C810 display is only compatible with the controller model A2PA. You can check the controller model in the “Device Information” section of the APP.

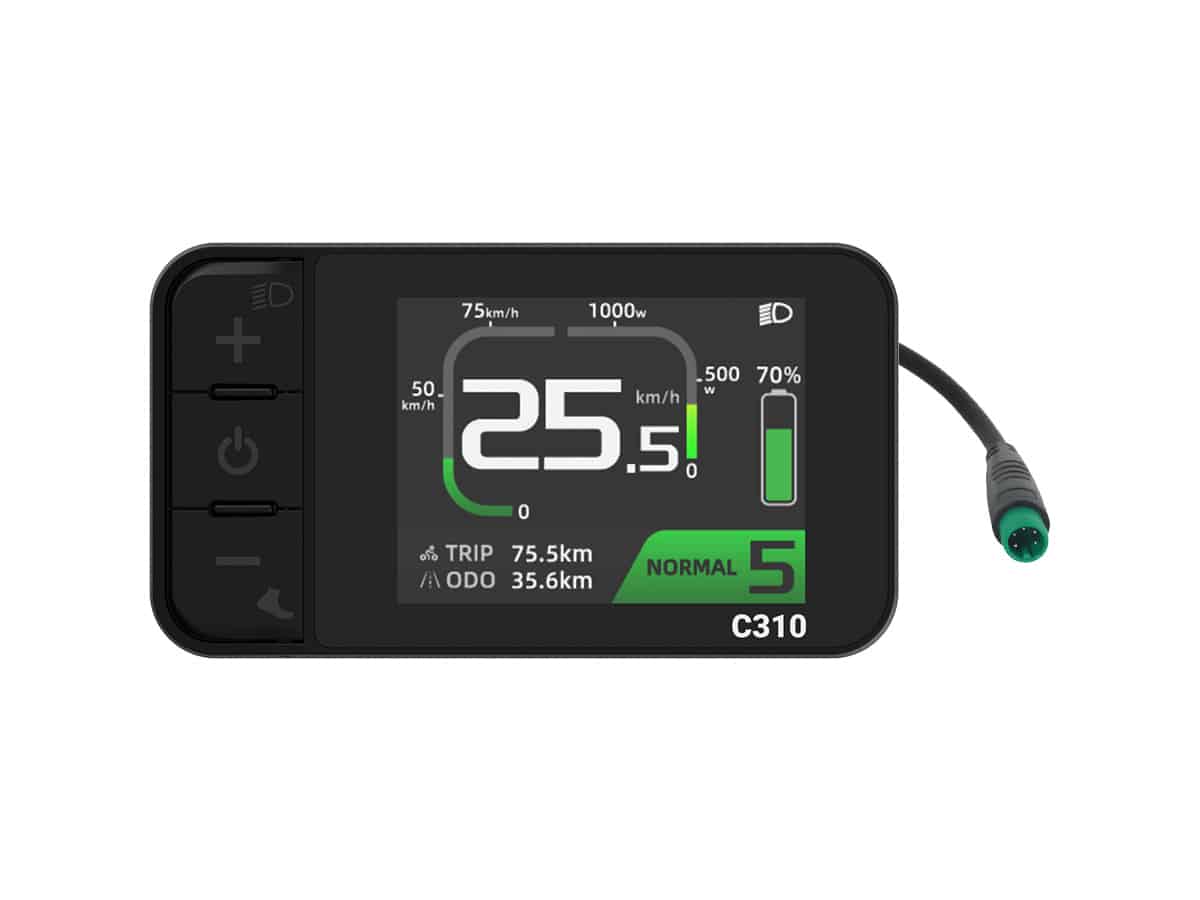

C310
The C310 is a compact TFT display designed for mounting on the left side of the handlebar. It is compatible with handlebars with a diameter of 22.2mm, measuring just 50mm × 90mm × 47mm. Equipped with a 2.4-inch screen and boasting a resolution of 240×320, it ensures clear visibility.
Note:
The C310 display is only compatible with the controller model A2PA. You can check the controller model in the “Device Information” section of the APP.

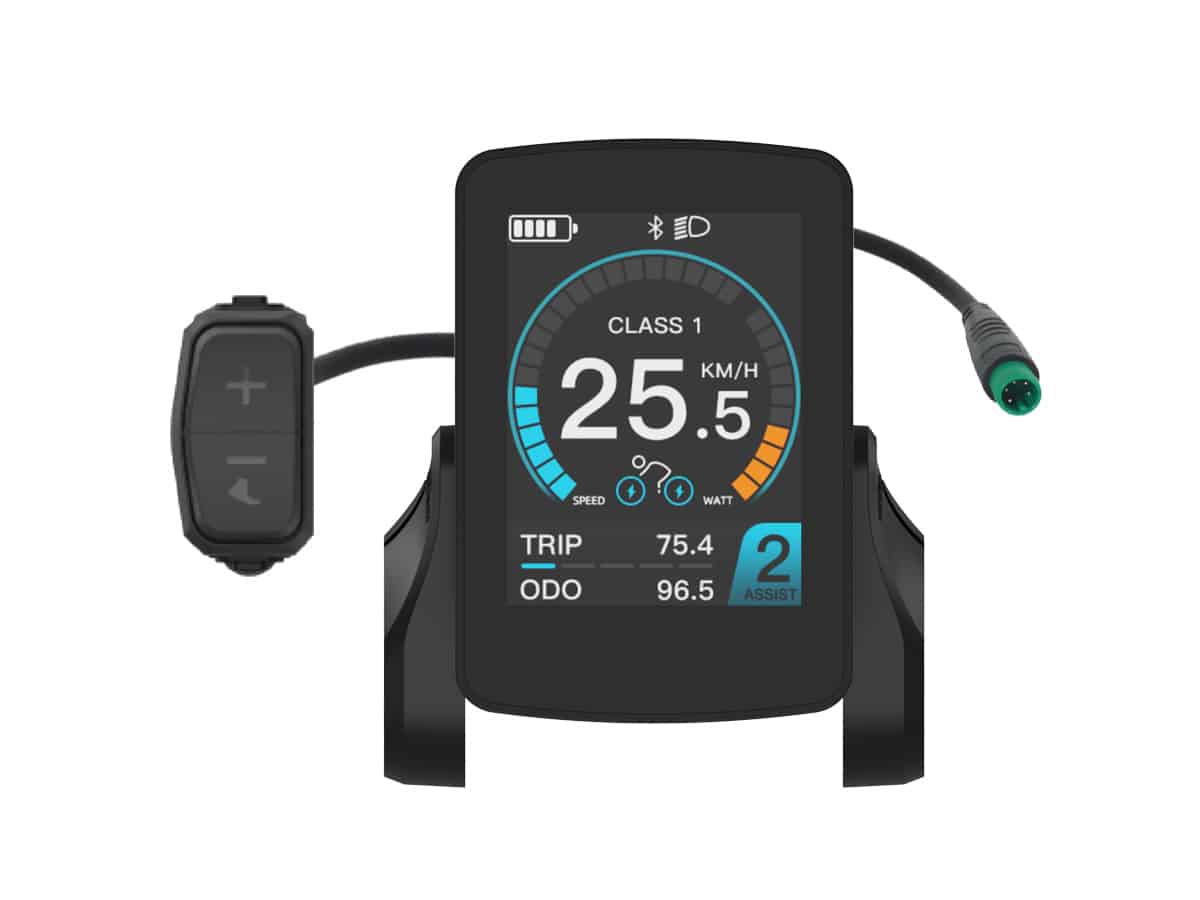

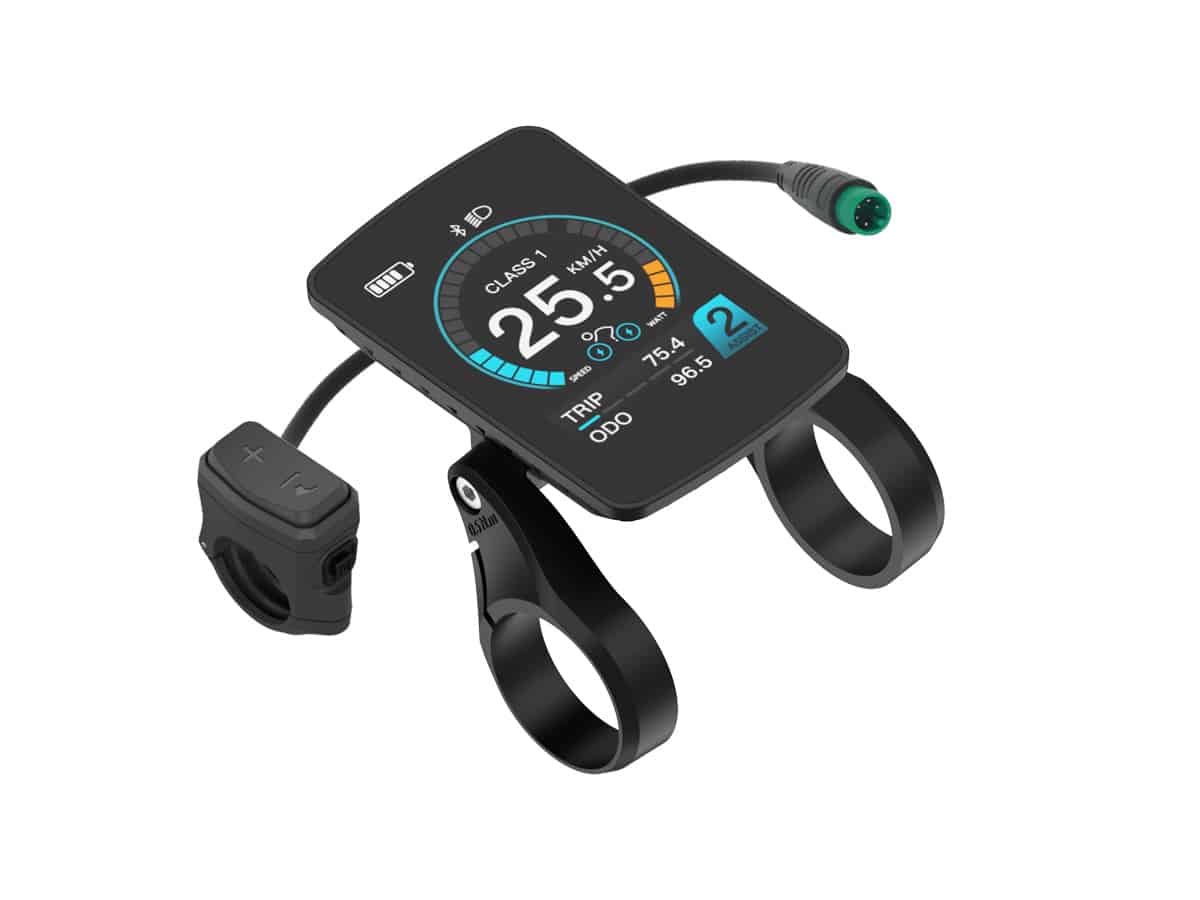

C810
Note:
The M210CTL display is only compatible with the controller model A2PA. You can check the controller model in the “Device Information” section of the APP.
Accessories Pre-installation/Post-installation
If Geeko kit and accessories you purchased were sent from China, usually we have already installed the accessories for you, you just need to connect the cable for the accessory.
If Geeko kit and accessories were sent from EU warehouse, or you have been using the Geeko kit for some time and want to extend the accessories for the Geeko, such as head light, rear light, handlebar display, or phone holder with USB charger. In the above cases, you need to extend the cables for the Geeko bracket controller by yourself. Don’t worry, this job is easy.
Parameter Setting Guide for Handlebar Display Expansion
After Handlebar Display expansion, parameters can be synced via two methods:
- Automatic Sync (Recommended)
- Plug in the battery and turn on the Intelligent Display of battery
- Turn on the Handlebar Display, and parameters will sync automatically.
- Manual APP Setting (Suitable for All Scenarios)
- Turn on both the Intelligent Display of battery and Handlebar Display.
- Open the 100G APP, enter Advanced Setting Mode(Please refers to APP Manual, chapter 5), and configure motor type, wheel diameter, and speed limit.
Daily Usage Tips
For regular riding, only turn on the Handlebar Display (no need to turn on the Intelligent Display of battery).
To use the 100G APP, please turn on the Intelligent Display of battery.
Warranty
| Items | Motor | Controller | Charger | Battery | Phone Holder |
| Warranty (Months) | 24 | 24 | 24 | 12 | 3 |
After-Sale Service
- Our goal is customer satisfaction!
- After you received the goods, if you do not know how to use it, please feel freely to contact us, we will try our best to deal with all problems.
- During the warranty period, if product parts have problem (like motor, controller, battery, charger, etc.), we will provide new parts for free(You need to provide strong evidence that shows these parts have been damaged), you only need to bear the freight. At the same time, we also can provide free technology consulting.
- Within 5 days after you received the goods, if you find there are problem with goods, please contact us.
Local Dealer & Service
We have distributors in some countries or regions, so that you can receive our products faster and provide more timely and accurate after-sales service. Please contact us and we will recommend a suitable distributor to you.
