Knowledge

Will Geeko Fit My Bike?

Will Geeko fit my bike

1. Will Geeko Motor Fit My Bike?

Geeko kits are designed to fit most bikes. In short, as long as your bike is not thru axle, Geeko kit will fit.

1.1 Geeko-Rear

Will Geeko-Rear Fit My Bike

1.2 Geeko-Front

Will Geeko-Front Fit My Bike

2. Default Motor & Motor Customisation

Regular Geeko motors are adapted to the most common bike frames, for other frames you can use the customisation service to make Geeko motors better fit your bike.

2.1 Geeko-Rear

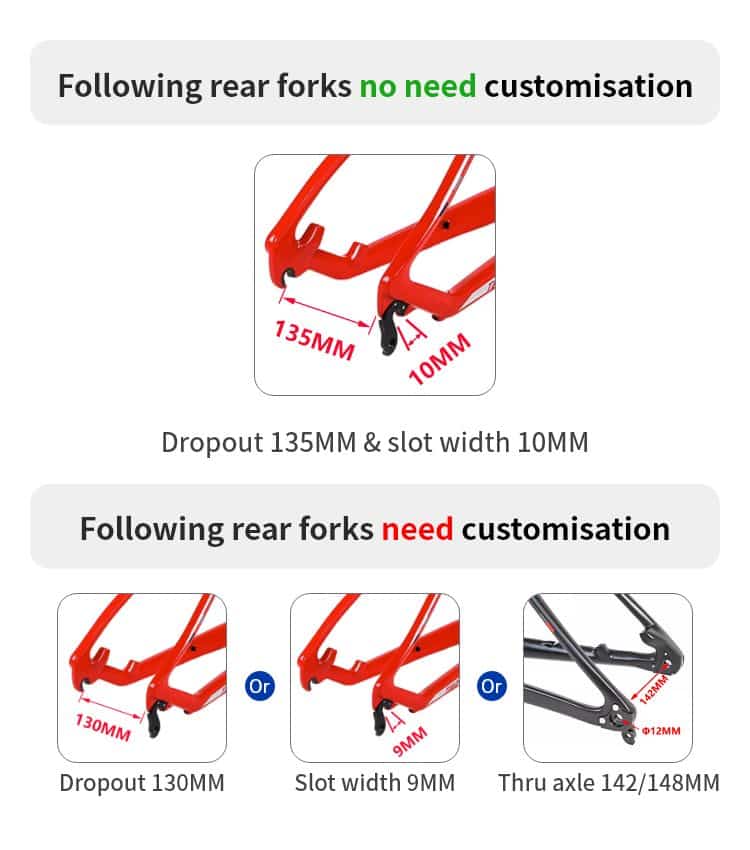

Geeko-Rear requires a rear fork spacing of 135mm and a slot width of 10mm, as shown below.

Also we provides motor customisation service for fork spacing 130MM if your bike is a rim brake roadbike.

Rear fork customisation

2.2 Geeko-Front

Geeko-Front requires a fork spacing of 100mm and a slot width of 10mm; and space is required at the pedal bottom bracket to mount the sensor, as shown below.

We also provide motor customisation service if you have a folding bike with fork spacing 80MM/74MM. There is also a special version fork slot width 8MM for Brompton bikes.

Front fork customisation

3. Will My Own Cassette Fit?

Will My Own Cassette Fit

4. Will My Own Brake Disc Fit?

Will My Own Brake Disc Fit

5. Will My Own Tyre Fit?

Will My Own Tyre Fit

6. How to Identify My Wheel Size?

Not sure about wheel size?

7. Which Geeko Battery Fits My Bike Frame Space?

How do I know which Geeko battery fits my bike frame space?

37 thoughts on “Will Geeko Fit My Bike?

  1. Roy Bates says:

    I am very interested in your back wheel kit however my bike is thru axle. Have you got plans to develop your kit for thru axle and if so when is this likely to BA available? I see Boost have already released theirs but I would rather purchase a Geeko kit if possible

    1. Gina says:

      Hello, thank you for your attention and have a nice day!
      We are planning to develop through-axis motors. But as you know, it is not easy. There are many sizes of axles, so adaptability is very important. We will let you know if there is any progress, thank you!

    2. alinev says:

      je suis aussi très intéressée par le kit arrière à axe traversant.

      1. Gina says:

        Bonjour, merci de votre attention et bonne journée !
        Nous envisageons de développer des moteurs à axe traversant. Mais comme vous le savez, ce n’est pas facile. Il y a plusieurs tailles d’axes, donc l’adaptabilité est très importante. Nous vous tiendrons au courant des avancées, merci !

  2. Marty Hoffman says:

    I just want to know if the rear kit will work on my bike.
    My bike shows on the tire:
    37-622. 28x 1.40-700x35c
    It has 11 cassette s

    My wife’s bike:
    37-622. 28×1.40
    12 cassettes

    1. Gina says:

      Hello, thank you for your enquiry and have a nice day!
      Both you and your wife’s bikes are suitable for our kits, for more information please contact sales@100g.tech.

  3. Michelle says:

    Hi!

    I’m interested in Rear Geeko Conversation Kit, but my bike has only a cassette with 6 different pinions. Will it works when I use my own cassette?

    1. Gina says:

      Hello, thank you for your attention and have a nice day!
      Our motors are adapted to 7S-11S cassettes, please contact sales@100g.tech

  4. Athena says:

    Can it fit a Zizzo Urbano? Can I use a 5 bolt disc brake ? My bike is 20 inch and has 5 bolt centre lock.

    1. Gina says:

      Hello, thank you for your enquiry and have a nice day!
      Please contact sales@100g.tech, and we will let you know if we can install it.

  5. Tim Lewis UK says:

    Can your drive system be used with a carbon frame and forks ? I see some vendors an additional bracket to re-enforce the dropouts @

    1. Gina says:

      Hello, thank you for your interest and have a nice day!
      Our kits are adapted to carbon brazed bikes, but we recommend installing torque arms.
      If there are any other questions, please contact sales@100g.tech or check out our website.

  6. David says:

    My tires say 26 x 1.95 HB – 575 rim. I don’t see anywhere that that will work.

    1. Gina says:

      Hello, thank you for your enquiry and have a nice day!
      The outer width of the rim we offer is 25MM, the rim height is 21cm, double-wall aluminium rim, suitable for 1.5-2.2(or 700X23C-42C) width tyres, compatible with rim brake and disc brake.

  7. Giovanni Mumolo says:

    Hi
    My dropout Is of about 139mm
    Does it fit?
    Thanks
    Giovanni

    1. Gina says:

      Hello, thank you for your enquiry and have a nice day!
      If you’re not sure if the Geeko kit is right for your bike, please check below. We recommend a rear kit for a better riding experience.
      https://www.100g.tech/will-geeko-fit-my-bike/

      Currently the Geeko kit does not support barrel axle bikes.
      Please feel free to let me know if you have any other questions.

  8. henri vanlancker says:

    Ce kit est il compatible pour un cedre bianchi oltre 4 avec frein a patins sur jante et pneu 700 x25
    Merci

    1. Gina says:

      Bonjour La largeur extérieure des jantes que nous proposons est de 25MM, la hauteur de la jante est de 21cm, jantes en aluminium à double paroi, adaptées aux pneus de largeur 1.5-2.2(ou 700X23C-42C), compatibles avec les freins sur jante et les freins à disque.Si vous avez besoin d’une jante à disque entièrement noire, veuillez consulter le lien ci-dessous pour la personnalisation.
      https://www.100g.tech/product/wheel-customisation-service/

  9. jose Menes says:

    Bonjour,
    les vélos avec des freins à patins conviennent-ils pour ce type de kit?
    merci

    1. Gina says:

      Bonjour, merci pour votre demande et bonne journée !
      Si votre disque est un disque à verrouillage moyen qui n’est pas fixé par 6 vis, il n’est pas compatible avec le kit Geeko. Nous vous suggérons d’acheter le disque chez nous et nous l’installerons à l’avance, ce qui est plus pratique.
      https://www.100g.tech/product/disc/

      1. Jens Maruszczak says:

        Hello, i will use my own casette with ditance rings and one gear. It will be fine. Thank you for your thoughts. Best greets from Berlin.

        1. Gina says:

          Ok,Thank you for your order, we will arrange shipment as soon as possible according to your order model.

  10. Thorsten Tripke says:

    Hallo, Ich habe ein Scott Gravel Speedster 20 Bike.
    Leider komme ich mit Ihren vielen Angaben nicht klar Sorry.
    Passt eines Ihrer Systeme auf mein Bike?
    Wenn ja welches würden Sie mir empfehlen?
    Vielen Dank und liebe Grüße.
    Thorsten

    1. Gina says:

      Hallo, danke für Ihr Interesse an unseren Produkten und dafür, dass Sie einen Kommentar im Blog hinterlassen haben
      Unsere Geeko-Kits unterstützen derzeit keine Fahrräder mit Steckachse
      Bei weiteren Fragen können Sie mich gerne kontaktieren.
      Ich wünsche dir einen schönen Tag!

  11. THOMAS RAISS says:

    Need a front hub motor that is according to EU standards (Pedelec) with all parts. Motor, sensors, brakesand if possible battery. Below our Bike

    The final product is ready and we are sending the first units to Europe to dealers. We exposed it at the Eurobike 2023.

    1. amber says:

      Hi, please kindly check https://www.100g.tech/product/geeko-front/ for our front kits and select the suitable model.

      Any other questions please feel free to let me know.

  12. Diego says:

    Hello!
    Whats the limitation for the tyre width? My tires are 26″ 50mm width, and I see they wouldnt fit. But I cannot understand why… is it because of the provided rim that can only fit up until 42mm tyres?
    Thanks!

    1. amber says:

      Hi, the rim supports max 60mm tyre. Because the British standard of 2.35 corresponds to the French standard of 60MM. Sorry there is the mistake in the blog.

      1. Diego says:

        Thank you very much 🙂

  13. Fabrice PALLEJA says:

    Bonjour, mon VTT Decathlon RR 520 S est il compatible ?
    Si oui pouvez vous me dire quelle configuration choisir.
    Je pensais à celle ci :
    Prime25078R , 9S , 584-27,5″-650B
    Cordialement

    1. amber says:

      Bonjour, après avoir vérifié les photos de votre vélo, nous avons constaté que notre kit convient à votre vélo. Veuillez sélectionner le prime-25078R avec une taille de roue de 27,5″.

      Je vous souhaite de bons achats !

  14. Dean Teasdale says:

    Hi, I see these size requirements, but your cart also asks to select Cassette from 7s to 12s, my Cassette has 8 different sprockets, which of these should I select?
    Also it asks to select from a list of Prime25078R etc, what do these mean?

    Thanks

    1. Senquan says:

      Please select “8S”.
      Prime25078R means the battery is Prime 7.8AH, and motor 250W rear.

  15. Omar says:

    Hallo!

    Funktioniert das Kit auch für Reifen ohne Disk break (sprich normale Felgenbremse) ? Im Installationsvideo tut man die scheiben bremse ja vom alten Rad abmontieren und ins gelieferte einmontieren. Kann man bei anderen Bremssystemen das einfach lassen?

    LG Omar

    1. Senquan says:

      Hallo, Ja Geeko Kit ist auch kompatibel mit Felgenbremse.

  16. Juri Bassauer says:

    Hallo,

    ja wir möchten die anpassung auf 130mm hinten nutzen.

    wird dies eine erneute bezahlung erfordern falls ja bitte ich sie uns dies mitzuteilen damit wir alles erledigen können.

    Es wäre auch sehr schön wenn sie uns einen vorausichtlichen Liefertermin mitteilen könnten.

    Dankeschön

    1. Senquan says:

      Hallo, die Motoranpassung ist eine zusätzliche Dienstleistung, die Sie über:
      https://www.100g.tech/product/motor-customisation-service/
