Description

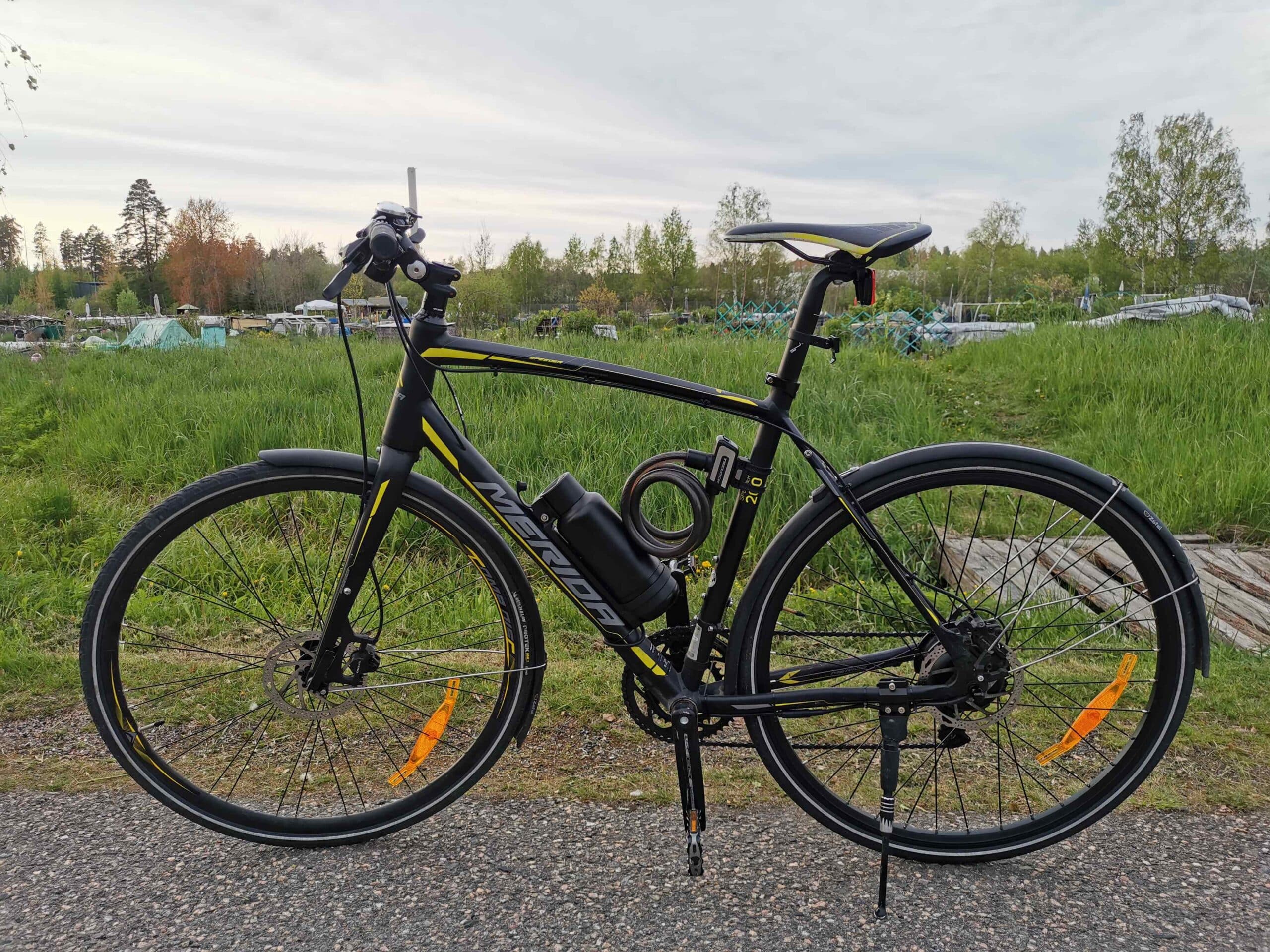

Geeko-Rear is the right ebike kit of cycling enthusiasts for daily commute, long distance riding, or serious mountain biking.

Geeko-Rear is a revolutionary and innovative eBike conversion kit consisting of only two parts, Geeko motor and Geeko bottle.

  • Geeko rear motor integrates the 100G patented smart cassette sensor, which can detect cadence and gear ratio at the same time and ensuring accurate assist power all the time.
  • Geeko bottle is designed based on exactly bottle appearance, it perfectly integrates battery, display and controller, and the 3-in-1 Geeko bottle makes the Geeko kit installed on the bicycle very natural, neat and beautiful.
Play Video about geeko rear kit

Geeko Rear Motor

Geeko-Motor
  • The optimized motor cable outlet can perfectly protect the motor cable from breaking when the bicycle falls and hits the motor cable.
  • Well-designed motor, real 135MM dropout size(most motors claim to be 135MM, but actually 142MM-145MM), This means you can easily mount Geeko motor to your bike frame without having to forcefully open the bike’s rear fork.
  • BLDC geared motor, with durable and reliable gears. The gear ratio is 4.33, which ensures that the motor can output a maximum torque of 48NM (500W motor).
Geeko-Motor with cassette sensor
  • The patented smart cassette sensor is mounted in the motor, that means you don’t need any cadence sensor in place of the bottom bracket. (Such sensors are prone to failure).
  • The smart cassette sensor can detect not only cadence but also gear ratios. Whether you increase or decrease the pedal cadence, or switch bicycle gears, it can immediately detect and notify the controller to adjust the assist power. This assures that you can get comfortable assist power all the time. (The cadence sensor has no way to detect the gear ratio).
Bionic Torque Power

Bionic torque power is an electric power distribution and control system independently developed by 100G.

  • The assist power is more linear and natural, especially for multi-gear bikes.
  • Maximum speed can be reached in every level.
  • The difference between the levels is the boost power of motor, (in other systems, the difference between the levels is the speed).
  • The maximum speed and maximum current of each level can be set independently.
  • Auto uphill enhancement, which means it automatically increases power when going uphill.
  • More power saving, the cruising range is 50% higher than other power assist systems. According to the test, using our system, the 10AH battery can last 130 kilometers, and the 15AH battery can last 200 kilometers.

Geeko Bottle

4 Bottles, 4 Colors

Geeko Bottle Battery

Bottle Bracket

Bottle Bracket
Intelligent display

Intelligent Display

The intelligent display is a bottle cap design that integrates perfectly with the bottle battery. It has a digital screen with 3 buttons and with Bluetooth 5.0 inside. The display is the most traditional HMI for electric bicycles. With the display, you can:

  • Check battery level
    View current equipment
  • View error codes. If the system fails, the error code will flash, which is very useful for quickly locating and troubleshooting.
  • View controller connection status
  • View APP connection status

With a combination of 3 buttons you can:

  • Power on/off system
  • Adjust 0-5 levels
  • Set system parameters, such as wheel diameter, speed limit, etc.

APP

Using our free app will be a cool experience and you will get richer UI interactions. Our APP is simple and easy to use, with only simple + and – buttons, the elderly and children can also use it without any difficulty. The APP is always Ready-to-Use, no additional settings are required. Just open APP, and ride, it should be that simple.

Smartphone APP as an extended HMI, it’s not mandatory, but it is great to have. With the app, you will be able to:

  • View real time speed
  • View battery power
  • View ride data
  • Adjust 0-5 levels
  • Check system failures
  • Modify system parameters
  • Upgrade controller firmware
100G APP
Controller

Controller

  • Controller is hidden inside a aluminum case with heat dissipation blade at the bottom of the bracket.
  • Real-time temperature monitor allows the controller to gradually reduce power output when the temperature is too high. This temperature protection ensures long-term reliable work of the controller.
  • The controller circuit board is fully potted with thermally conductive adhesive, ensure IPX7 waterproof level of controller, which means that the controller can work in any rainy weather.

Package & Unboxing

Play Video about geeko rear unboxing

Installation

Play Video about geeko rear install
Specifications

Geeko-Rear Kits

Geeko Model Mini-25052R   Solid-25100R   Solid-35100R   Prime-25078R   Prime-35078R   Prime-25100R   Prime-35100R   Max-25150R   Max-35150R   Max-50100R
Motor Model MT-3625R MT-3625R MT-3635R MT-3625R MT-3635R MT-3625R MT-3635R MT-3625R MT-3635R MT-4850R
Motor Power 36V250W 36V250W 36V350W 36V250W 36V350W 36V250W 36V350W 36V250W 36V350W 48V500W
Battery Model GB-36052-Mini-B3 GB-36100-Solid-B3 GB-36078-Prime-B3 GB-36100-Prime-B3 GB-36150-Max-B3 GB-48100-Max-B3
Bottle Mini Solid Prime Max
Battery Capacity 36V5.2AH 36V10.0AH 36V7.8AH 36V10.0AH 36V15.0AH 48V10.0AH
Charger 42V2A 42V3A 42V2A 42V3A 42V3A 54.6V3A
Mileage in PAS mode at level 1 (km)* 65 130 95 130 200 130
Mileage in throttle mode (km)* 20 40 30 40 60 40
*Regarding the mileage, it is obtained under the following ideal conditions: flat road, no wind, the rider’s weight is 60KG, the actual mileage will vary due to different conditions

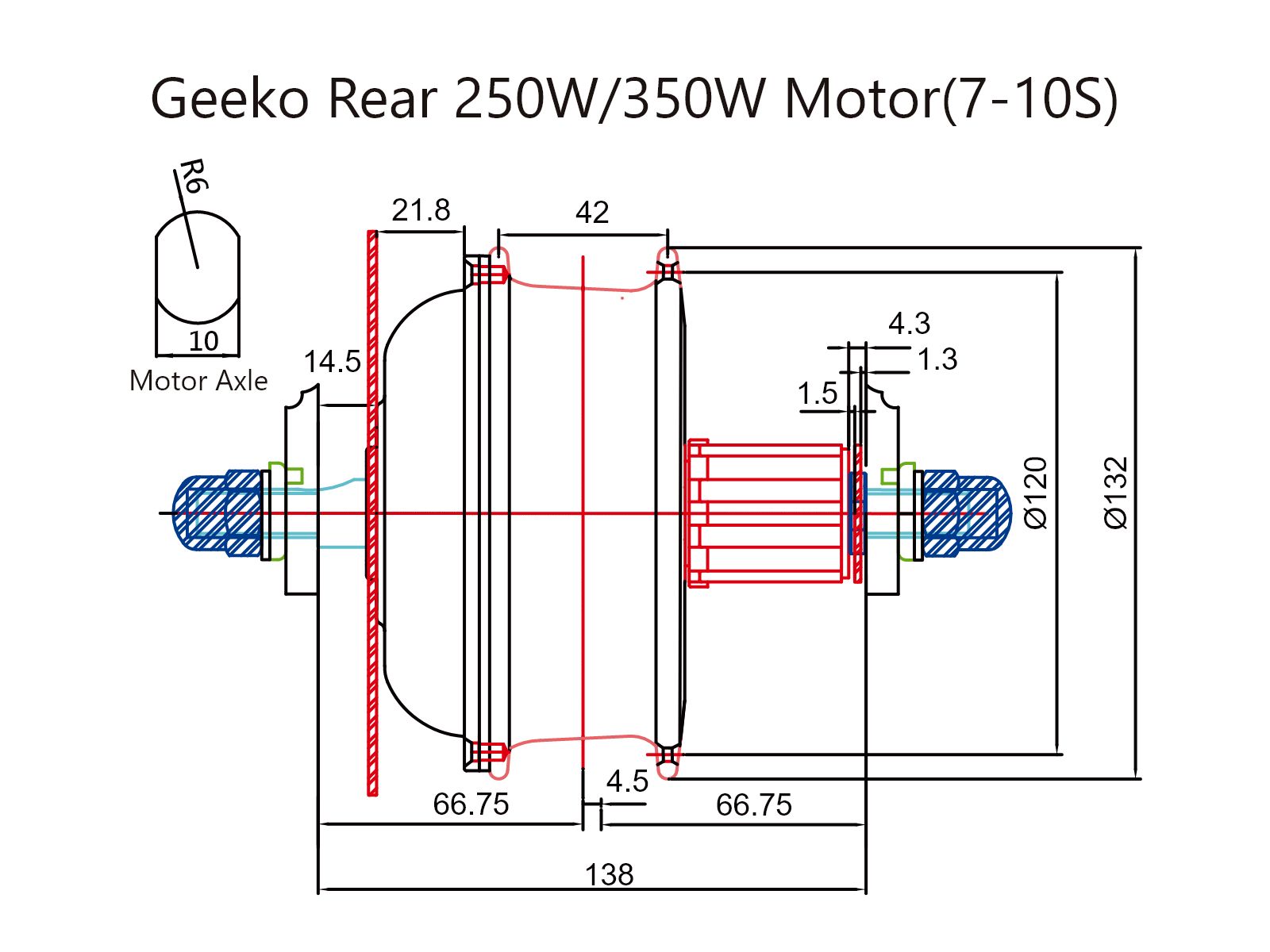

Geeko Rear Motors

Geeko Rear Motor
Motor Model MT-3625R MT-3635R MT-4850R
Power 250W 350W 500W
Rated Voltage(V) 36 48
RPM 290 350 450
Contruction Gear Drive
Gear Ratio 4.33
Torque(NM) 38 40 48
Weight 2.6 3.5
Diameter(mm) 132 150
Efficiency(%) >80%
Cable & Connector 10 pins waterproof connector
PAS Sensor Built-In Cassette Sensor
Spoke Holes 36
Brake Disc brake or V brake
Installation Width (mm/OLD) 135 138
Max. Speed (KM/H) 20″ 25 29 38
26″ 32 38 49
27.5″ 34 40 52
700C 35 41 53
Waterproof IP65
Certificates CE

250W Rear
500W Rear

Geeko Bottles

Mini-C Size
Solid-C Size
Prime-C Size
Max-C Size

Geeko Batteries

Model GB-36052-Mini-B3 GB-36100-Solid-B3 GB-36078-Prime-B3 GB-36100-Prime-B3 GB-36150-Max-B3 GB-48100-Max-B3
Bottle Case Mini Solid Prime Prime Max Max
Capacity 36V 5.2AH 36V 10.0AH 36V 7.8AH 36V 10.0AH 36V 15.0AH 48V 10.0AH
Panel B3
Height(mm) 222.5 222.5 292.5 292.5 292.5 292.5
Diameter(mm) 76 87 76 76 87 87
Weight(kg) 1.5 1.8 1.9 1.9 2.6 2.3
Cell Type 18650 21700 18650 21700 21700 21700
Cell Brand DC LG/Samsung DC LG/Samsung LG/Samsung LG/Samsung
Waterproof IPX7

Warranty

Warranty

Items Motor Controller Charger Battery Phone Holder
Warranty (Months) 24 24 24 12 3

After-Sale Service

  1. Our goal is customer satisfaction!
  2. After you received the goods, if you do not know how to use it, please feel freely to contact us, we will try our best to deal with all problems.
  3. During the warranty period, if product parts have problem (like motor, controller, battery, charger, etc.), we will provide new parts for free(You need to provide strong evidence that shows these parts have been damaged), you only need to bear the freight. At the same time, we also can provide free technology consulting.
  4. Within 5 days after you received the goods, if you find there are problem with goods, please contact us.

Local Dealer & Service

We have distributors in some countries or regions, so that you can receive our products faster and provide more timely and accurate after-sales service. Please contact us and we will recommend a suitable distributor to you.
